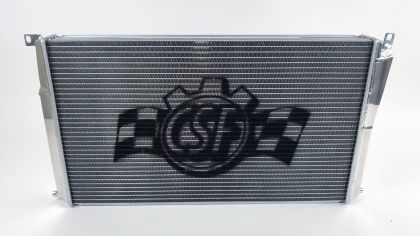

CSF PERFORMANCE RACE-SPEC RADIATOR: 2015–2018 BMW M2/2012–2016 BMW M235I
CSF PERFORMANCE RACE-SPEC RADIATOR: 2015–2018 BMW M2/2012–2016 BMW M235I
CSF Performance worked with BMW Motorsport R&D partner, Tyspeed Automotive, to a release the new Ultimate High-Performance Cooling Solution for the BMW F87 M2 and M235i models. With the need for additional cooling in racing and endurance applications, CSF Performance maximized the space in front of the N55 motor by deleting the factory A/C condenser and making the race-spec core 10mm thicker than the standard high-performance BMW F87 M2 radiator.
Features:
- Requires A/C condenser delete to install, but still “drop-in” fit after removal of A/C condenser
- two-row 52mm core (dual core) featuring CSF Performance’s exclusive B-tube technology
- Core features an ultra-efficient fin with 8mm fin height and multi-louvered design for maximum surface area contact
- Triple-pass flow structure allows the coolant to flow across the core of the radiator three times before exiting the radiator for lowest outlet temperatures possible
- CNC machined quick-connect inlet/outlet connections + all aux connections
- CNC machined brackets and fittings for superb fit and durability
- All-aluminum race style drain plug
- 1 hour mirror finish hand polish
- Accepts all attaching OEM components including quick-connect hoses, mounting brackets, and fan shroud
Application: 2015–2018 BMW M2/2012–2016 BMW M235i
Part Number: 7078LT
CSF 15-18 BMW M2 (F87) / 12-16 BMW M235i/M235ix Race Radiator - Requires AC Condenser Delete
MAP: $799.00
